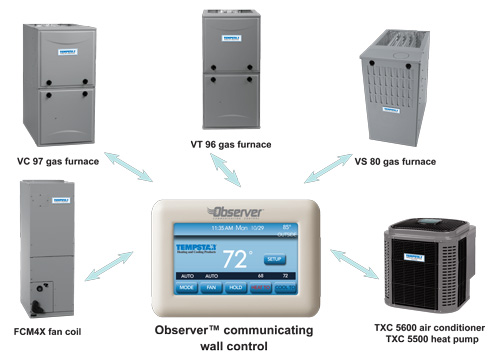

Designed to maximize comfort and efficiency, the Observer™ communicating system utilizes the Observer communicating wall control to interface with the new lineup of Tempstar communicating split-system products.

Click on the links below to learn more about these new communicating split-system products:

►Observer communicating wall control
►Tempstar TXC 5600 air conditioner
►Tempstar TXC 5500 heat pump
►Tempstar VC 97 gas furnace
►Tempstar VT 96 gas furnace
►Tempstar VS 80 gas furnace
►Tempstar FCM4X fan coil

When you install the Observer communicating wall control with these new Tempstar communicating split-system products, it will automatically:
►Find the attached equipment
►Display its information on the screen, and
►Configure the system for optimal performance.

The Observer communicating system is easier to install, easier to service, and easier to sell. Click here to find out more.

Return to top.

TXC 5600 air conditioner
TXC 5500 heat pump
• Up to 16 SEER with ECM indoor section motor (AC)
• Up to 15 SEER with ECM indoor section motor (HP)
• 1½ - 5 tons
• Single-stage compressor
• Text based diagnostics with Observer communicating wall control
• High and low pressure switches factory installed
• External high and low refrigerant service ports
• Compressor sound blanket factory installed
• Isolation grommet compressor mounting system
• Quiet shift defrost control setting (heat pump only)
• Filter-drier supplied with each unit for field installation
• 7mm coil tubing with rigid, post-painted, black aluminum fins
• Coated inlet grille with 3/8” wire spacing
• 5 year No Hassle Replacement^TM limited warranty
• 10 year parts limited warranty with timely registration (see warranty certificate for details)

Return to top.

VC 97 gas furnace
• Up to 98% AFUE
• 60 - 120 MBTUh
• Text based diagnostics with Observer communicating wall control
• Modulating gas valve
• ECM variable-speed blower motor
• Stainless steel primary heat exchanger
• 2-stage cooling compatible
• 10 year No Hassle Replacement^TM limited warranty
• Lifetime Heat Exchanger limited warranty
• 10 year parts limited warranty with timely registration (see warranty certificate for details)

Return to top.

VT 96 gas furnace
• 96% AFUE
• 40 - 120 MBTUh
• Text based diagnostics with Observer communicating wall control
• 2-stage heat
• ECM variable-speed blower motor
• Stainless steel primary heat exchanger
• 1-pipe or 2-pipe venting
• 2-stage cooling compatible
• 10 year No Hassle Replacement^TM limited warranty
• Lifetime Heat Exchanger limited warranty
• 10 year parts limited warranty with timely registration (see warranty certificate for details)

Return to top.

VS 80 gas furnace
• 80% AFUE
• 45 - 135 MBTUh
• Text based diagnostics with Observer communicating wall control
• ECM variable-speed blower motor
• 33.3-inches tall
• 2-stage heat
• 2-stage cooling compatible
• Low NOx
• 10 year No Hassle Replacement^TM limited warranty
• 20 Year Heat Exchanger limited warranty
• 10 year parts limited warranty with timely registration (see warranty certificate for details)

  Return to top.

FCM4X fan coil
• ECM variable-speed blower motor
• 2 - 5 tons
• Tin coated copper tube and aluminum fin coil
• Factory installed R-410A TXV
• Supports single or 2-stage outdoor units
• 10 year No Hassle Replacement^TM limited warranty
• 10 year parts limited warranty with timely registration (see warranty certificate for details)

And the Tempstar split-system lineup is about to become even better with the addition of new communicating two-stage air conditioners and heat pumps. Watch for new two-stage models this spring!

Return to top.
